Lecture 6

• Lecture 6
  • Video
  • Slides
  • Job Tracker in Hadoop
  • Task Tracker
  • MapReduce and Spark
  • Spark
    • RDD PErsistence
    • Transformations
    • RDD Lineage
    • Example
  • Cloud Applications
  • Real-Time processing applns
  • Distributed data flows
  • The n+1 problem
    • Solution
  • Apache KAfka
    • Design and Implementation
    • Architecture

Video

link

Slides

link

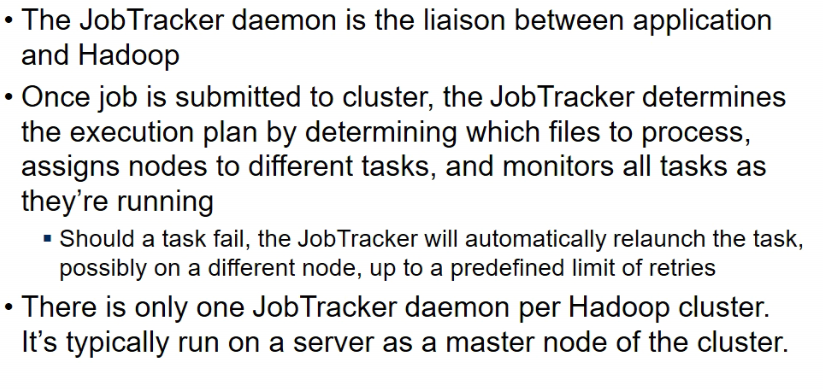

Job Tracker in Hadoop

Task Tracker

MapReduce and Spark

• fault tolerance, how?
  • replication: active, passive replication
  • when job fails, it is reinitiated again
  • it cannot be started from the point it finished, that’s what Hadoop’s principle is
  • if data is lost in one data node, it is available in 2 other data nodes
• Load balancing
  • distributed to multiple nodes na bhai
  • also, while I do processing, mapreduce, map jobs are distributed
• MapReduce is not suited in all situations
  • it is good in most of jobs
  • but for iterative jobs like k-means algorithms where u have to keep doing jobs until threshold condition is specified, this is diff in mapreduce
    • no clear cut demarcation in map reduce
  • hadoop is meant for offline analysis = batch analysis
    • offline = file me hai cheejein
    • for interactive analysis = when I want to interact with the dataset like SQL query likha and then uske upar queries likha
    • Hadoop me this is quite problematic
    • bcz sab cheejein disk me likhi jaati, har cheej ka output gets to disk
    • so if multiple mapreduce chained, then first wala disk me likhega and then agla read waha se
    • it is not good for interactive data

Spark

• it works with working sets mtlb it has a feature jisse I can tell it ki this data should be held in memory
• Resilient Distributed Dataset => it is like a table but partitioned on multiple machines
  • and if some partition is lost, it can be rebuilt
  • there is no replication but what all operations have been done since built can help in so

• basic contains each item as a single value
• paired is key,value pair

RDD PErsistence

Transformations

• flatmap = one to many
• each element is transformed into multiple elements, so size of source and destn rdd might nto be same

• example
• stream operations hai
  • pipelining the operations
• last is not RDD transformation, rest are
• mapToPair gives paired RDD
• reduceByKey involves cross communication
  • i.e. if RDD is stored across multiple nodes

RDD Lineage

Example

Cloud Applications

• pipelined execution
  • microservices
• bactch procesing
  • did today
• real time processing
  • will do abhi
• web applns

Real-Time processing applns

• 3 dimensions
  • accuracy
  • time
  • memory
  • need methods to obtain maximum accuracy with min time and low total memory
• Stream = unbounded
  • data is being generated continuously
  • so memory that is reqd to hold is also unbounded
  • so jo programs offline analysis pe use kie the woh directly nahi use kar sakte ab
  • Sliding window(overlapping), tumbling window, tilding window, use karenge
  • I have to finish processing a window b4 other comes

Distributed data flows

• how do we connect source and sink

• tradeoff b/w message losses and speed

• atmost once = there could be losses
• atleast = data must be delivered

• exactly = no compromise with data, it should go as it is

• n+1 delivery problem
  • say 3 systems are supposed to rcv data
  • ab agar new system is added rcvr4 and usko I have to give dtaa in a particular format, this is n+1 dlvry prob

• max perf a rahi even if there is some loss, no delays

• txn systems, whatever msg is sent, should reach system
• no losses, no repetition
• RabbitMQ is one such platform

• loss cannot be tolerated = reliability is reqd

The n+1 problem

• bits me sare depts (swd, augsd, etc) ko same student data chahiye but some different formats me
• now if new dept is added and usko naye form me chahiye, I need to add certain adapter/bolt in system which wil ltransform the data according to consumer needs

Solution

• service Oriented Architecture
• bus hai, koi bhi usse connect kar sakta
• bus will handle interaction with services

• the consumer/middleware will itself convert data to the format it wants

• PubSub systems (Publisher/subscriber)
  • pub = producer of data
  • sub = consumer of data

Apache KAfka

Design and Implementation

Architecture

• producer produces data with a topic
• consumer subscribes to the topic
• topic is divided into partitions
• each partition resides on a separate physical server
• each partition is capable of supporting some b/w

• increase #partitions agar handling capacity badhaani

• broker looks at incoming data, each broker resp for multiple partitions

• msgs come from multiple topics
• broker should go to write partition in the topic

• dynamically i can add partition to a topic

• write ahead log hai
• first ensure log is commited to the disk, then only write to partition

• FIFO nahi le sakte, RabbitMQ vagairah me hota
• msgs might not be coming in same order to consumers might not be same as in which they were published
